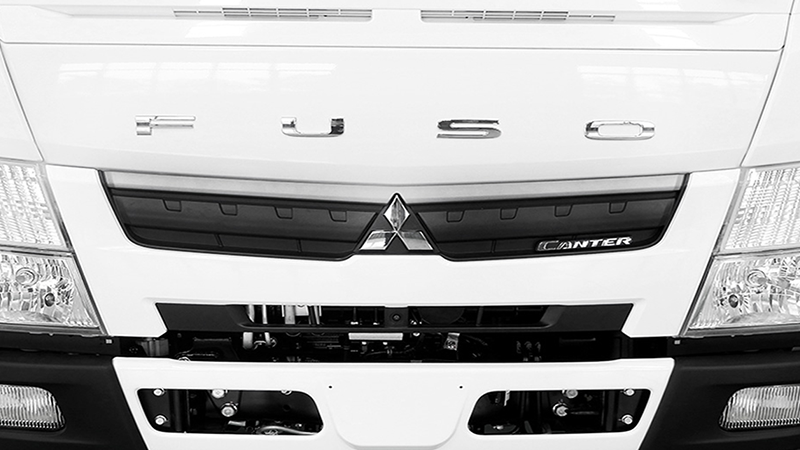

Outstanding chrome-plated Mitsubishi Fuso logo.
Front bumper equipped with fog lights.
Outstanding chrome-plated Mitsubishi Fuso logo.
Front bumper equipped with fog lights.
Halogen front lights with integrated turn signals, high illumination.
The entire cabin is painted with ED electrostatic powder coating and Metallic paint to create a high-class metallic shine.

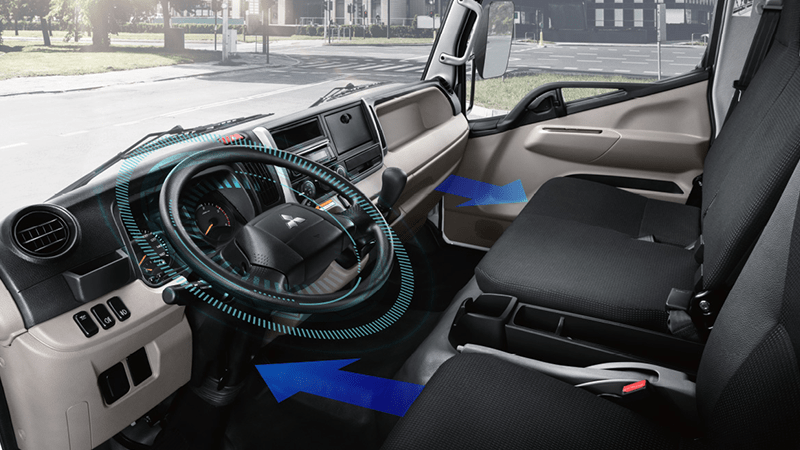

Space arranged scientifically
Space arranged scientifically
LCD screen displays multi-information
Standard cabin air conditioning, FM/USB radio, USB jack
Braking system: 02 independent hydraulic lines with vacuum assist. Equipped with ABS anti-lock braking system to increase safety when operating the vehicle. The EBD system distributes braking force between the front and rear wheels based on load conditions, optimizing braking efficiency.
Braking system: 02 independent hydraulic lines with vacuum assist. Equipped with ABS anti-lock braking system to increase safety when operating the vehicle. The EBD system distributes braking force between the front and rear wheels based on load conditions, optimizing braking efficiency.
Chassis SUPER FRAME technology - Exclusive technology of Mitsubishi - Japan with reinforced and linked chassis to optimize torsional rigidity and load-bearing capacity. The product is fully electrostatically dipped to increase rust resistance and durability over time.
| Overall dimension | mm | 6.730 x 2.135 x 2.235 |
| Inside Box Dimension | mm | 5,200 x 2,020 x 2,040 (Canopy) |
| Wheelbase | mm | 3.850 |
| Wheel tread (Front/rear) | mm | 1.665/1.670 |
| Ground clearance | mm | 210 |
| Curb weight | kg | 2.360 |
| Payload | kg | 3.490 |
| Gross Weight | kg | 7.500 |
| Model | 4P10-KAT4 | |
| Type | Diesel, 4-stroke, 4-cylinder in-line, turbocharged, water-cooled, intercooled, direct fuel injection, electronically controlled (ECU) | |
| Bore x Pistol | mm | 95,8 x 104 |
| Max Power | Ps/rps | 150/3.500 |
| Max moment | Nm/rps | 370/1.320 |
| Cluth | 01 đĩa, ma sát khô, dẫn động thủy lực | |
| Gearbox | M038S5, mechanical, 5 forward gears, 1 reverse gear |
| STEERING | Ball screw, hydraulic power steering |
| BRAKE SYSTEM | Drum brakes, hydraulic drive, vacuum assist (ABS, EBD) |
| Front | Dependent, leaf spring, hydraulic shock absorber | |
| Rear | Dependent, leaf spring, hydraulic shock absorber |
| Sloping ability | % | 41 |
| Turning radius | m | 7.1 |
| Max speed | km/h | 112 |
| Fuel tank | L | 100 |
